Quality Control Troubleshooting

Internal resource for troubleshooting some of the most common issues encountered during our quality control process. The steps outlined below utilize a combination of open source and custom-built tools built in collaboration with and maintained by Media Preservation Services, Media Preservation Labs, and Digital Preservation.

The workflows outlined on this page make use of the following NYPL GitHub repositories:

• NYPL/ami-metadata

• NYPL/ami-preservation

• NYPL/ami-tools

Note: In most cases, you will be required to have full access to the drive/files you are working on to perform these repairs.

While some errors may require a vendor or engineer to rework and re-deliver files, many of the most common errors encountered during QC can be fixed by using the steps outlined below.

Table of contents

1. Repairable Errors
   1. Invalid Oxum (Size Discrepancy)
   2. Invalid JSON (Metadata Issues)
   3. Repairing JSON MD5 Checksums
   4. Hidden System Files
2. Irrepairable Errors
3. Supplemental Resources
   1. Moving and Removing Files and Directories
4. Locate a string within a file type
5. Tools

Repairable Errors

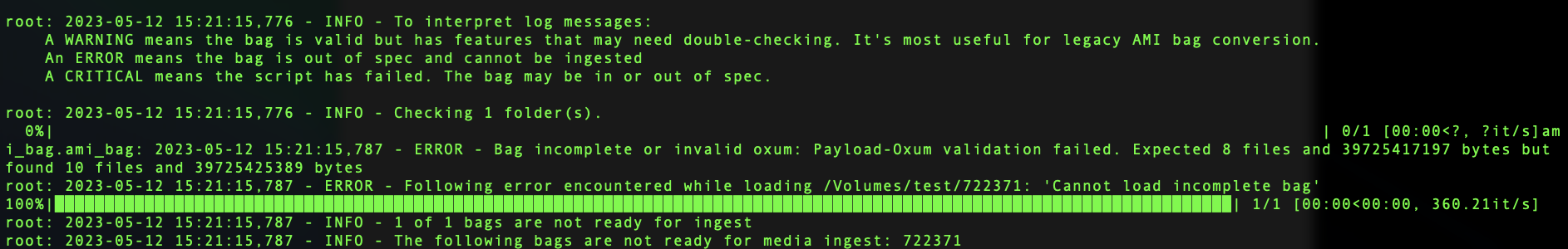

Invalid Oxum (Size Discrepancy)

The oxum of a bag may become invalid when the number of files listed in the manifest-md5.txt file do not correspond with the number of files present in the bag. Fixing an invalid oxum requires manually inspecting the manifest-md5.txt file against the number of items in the bag and using fix_baginfo.py and validate_ami_bags.py to fix and confirm validation of the bag.

Repairing invalid oxum requires use of scripts within the NYPL/ami-tools repo, managed by NYPL’s Digital Preservation department.

• Check the number of files in the manifest-md5 against the number of files present in each of the directories within the bag using ls -a.
• Conform the manifest-md5.txt to match the number of files present in bag, either by removing unwanted files or by adding existing files and their corresponding md5 checksums to the manifest-md5.txt. (See below for more information on hidden system files and how to address them.)
• Delete tag manifest
• Repair bag using fix_baginfo.py
• Validate bag

  /path/to/ami-tools/bin/validate_ami_bags.py -b path/to/bag


Invalid JSON (Metadata Issues)

A JSON file may be invalid when the contents or structure do not adhere to NYPL’s [ami-metadata schema](https://nypl.github.io/ami-preservation/pages/ami-specifications.html or other metadata requirements outlined in NYPL’s specifications. Some of the most common causes for invalid JSON include: empty required fields, use of terms not included in controlled vocabularies, inclusion of unrecognized characters, unnecessary blank spaces, and invalid JSON file structure. Repairing invalid JSON files requires using a combination of manual inspection and ajv validate, fix_baginfo.py, and validate_ami_bags.py to validate the file against a schema, fix the bag that contains the file, and confirm validation of the repaired bag.

Repairing JSON requires identifying and resolving specific errors one at a time, and validating single JSON files against individual schema files to receive more detailed error logging.

• Create a working copy of the error-ridden JSON file you are analyzing on your personal workstation (never experiment with original files - only copies)
• Determine the appropriate schema type based on the media format listed in the JSON
  • Locate the sourceObjectFormat field in the JSON file
  • Locate the schema file in ami-metadata that corresponds to the file you want to validate
• Validate the single JSON files against the selected schema file using the code below (also described on the ami-metadata repo README)

  cd /path/to/ami-metadata/versions/2.0/schema


  ajv validate -s /path/to/version/2.0/schema/format schema -r path/to/versions/2.0/schema/fields.json -d /path/to/file you want to check

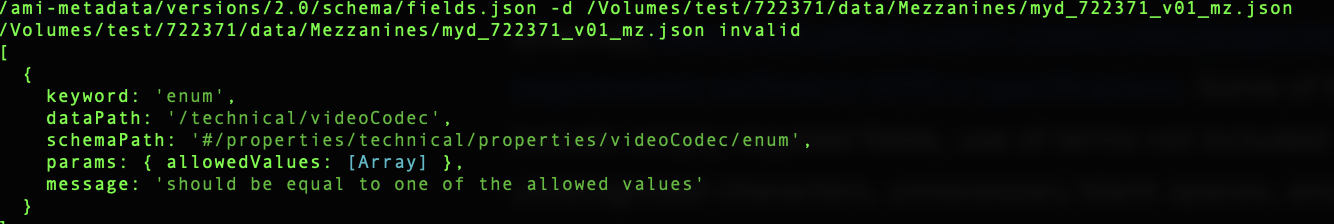

Ajv will report any fields that don’t correspond to values allowed by the format’s schema.

• Compare errors reported to the schema rules to determine issue(s)
• Manually repair errors on your personal copy of the file created in step 1, and save file
• Validate single file again against the proper shchema
• If valid, replace original JSON file in bag with your new repaired copy
• Validate all JSON files in a group of bags using ajv to double-check validation

  ajv validate --all-errors --multiple-of-precision=2 --verbose -s /path/to/ami-metadata/versions/2.0/schema/digitized.json -r "/path/to/ami-metadata/versions/2.0/schema/*.json" -d "/Volumes/DRIVE-ID/*/*/data/*/*.json"


• Once the JSON file has been reapired and replaced, this new JSON file will have a different md5 checksum than the original; the md5 manifest must now be updated. Do this by using repair_ami_json_bag.py as directed below.

• Validate bag structure (Note: below command does not validate checksums - only structure and contents)

   validate_ami_bags.py --slow -b path/to/bag


Repairing JSON MD5 Checksums

[insert image]

Making changes to any JSON file within a bag will result in the MD5 checksum of the file to change, resulting in an invalid bag. A new checksum must be created in order for the bag to validate. While it is possible to generate a new checksum using the md5 command, this process can be time-consuming, especially when dealing with a large number of files requiring new checksums. A quick and effective way to generate new checksums for multiple JSON files at a time is by using repair_ami_json_bag.py with the –badjson flag.

• Before generating new checksums, you will need to fix the bag info by using fix_baginfo.py.

path/to/ami-tools/bin/fix_baginfo.py -b path/to/bag or -d path/to/drive depending on if you're working on a bag or directory

• Once the bag info has been fixed you can generate new MD5 checksums for JSON files.

/path/to/ami-tools/bin/repair_ami_json_bag.py -badjson -b path/to/bag or -d path/to/drive depending on if you're working on a bag or directory

• After the new checksums have been created, validate the integrity of repaired bag(s)

/path/to/ami-tools/bin/validate_ami_bags.py  --slow -b path/to/bag or -d path/to/drive depending on if you're working on a bag or directory

Hidden System Files

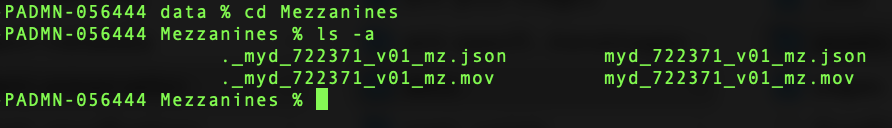

Another common issue that can occur during QC is the presence of hidden files. Invisible files are generated by an operating system — often during production or bagging — and because they are hidden, go unnoticed until the validation process. A bag containing hidden files will not validate due to a discrepancy between the number of files listed in the manifest-md5.txt and the number of files present in the bag; this will often result in an invalid oxum as well. Hidden file filenames often begin with a period and are easy to identify once the contents of a bag are identified. Examples: .Trashes, .DS_store; or they may resemble existing filenames, such as .abc_123456_v01_pm.mov

Rather than mass eliminating hidden files within a batch, it is usually best to address problems with bags individually. The below describes how to identify and remove single hidden files.

cd path/to/bag/inner/directory/

• List contents of directory

ls -a

• Send invisible files to your trash / recycle bin

trash .filename

• Run fix_baginfo.py to fix bag info if needed
• repeat process for each directory as needed
• Validate directory/bag to check if removal of system file resulted in a valid bag

  validate_ami_bags.py –quiet -d path/to/directory


Irrepairable Errors

Media Preservation Services (MPS) may not be able to repair some errors if the physical media requires re-digitization or the quantity of error(s) is substantial enough to justify re-work. In instances where it has been determined MPS is unable to resolve an error, the vendor or the appropriate Media Preservation Labs Engineer is notified and re-work is requested. All errors and resolutions / decisions are noted in QC logs.

Supplemental Resources

The following resources may be used in tandem with the steps outlined above to fix some common errors.

Moving and Removing Files and Directories

Occasionally during QC, files and directories may need to be moved or removed for a variety of reasons, including: they fail quality control and need to be redelivered, or they pass and need to be moved to a new location.

If vendor project files fail QC and an entire asset (or group of assets) need to be redelivered, the files are removed from the hard drive and quality control is completed on the remaining approved files. When the redelivered files are received, they must undergo the entire quality control process before they can be approved for ingest.

When an in-house project passes QC, the project is moved from InHouse to the QC-pass directory on ICA. If an in-house project fails QC, the Media Preservation Labs Manager and Engineer are notified and the corrected files are redelivered to the InHouse directory on ICA. The reworked assets are subject to the entire quality control process before they can be approved for ingest.

• Move a file or directory from one location to another

  mv /path/to/source path/to/destination


• Remove a file or directory
  • use Trash. Trash will safely remove a file or directory and move it to your Trash / recycle bin

Locate a string within a file type

During QC it may be necessary to locate recurring file types, filenames, operators, or errors within a directory.

Information about using grep can be found on the NYPL Media Preservation Documentation Command Line Resources page.

• Navigate to the directory

cd /path/to/directory

• Locate a string within a directory

find . -name "*.ext" | xargs grep "string"

Tools

See our Command Line Resources for descriptions, usage, and installation instructions of various tools we use in this workflow.
